          ;    NAB系列

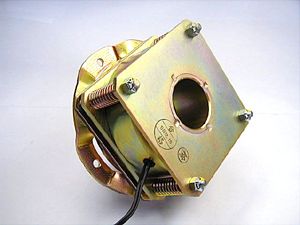

          NAB-32 ACTION:

          On exciting the coil. Armature is attracted to field byond the spring force and makes a gap between inner-disc and outer-disc. Then the brake is released. Armature is released by interruption of coil current and pushes inner-disk and outer-disc to end plate by the spring force, then the brake is actuated by friction. This brake is closed any time when the coil is not excited.
          Major characteristics.
          characteristics
          model No:NAB-
          NAB-32
          NAB-34
          NAB-42
          NAB-44
          NAB-52
          NAB-54
          Rated torque Nm
          2
          4
          7.5
          15
          22
          40
          Rated voltage DC V
          *200
          *200
          90
          90
          90
          90
          Coil resistance
          (20℃)
          Ω
          346
          346
          383
          383
          237
          237
          Rated current
          (20℃)
          mA
          195
          195
          240
          240
          380
          380
          Allowable braking energy rate W
          41
          82
          98
          123
          123
          123
          Allowable braking energy upto gap adjustment MJ
          29
          29
          57
          57
          40
          40
          Max. safety speed r/min
          1800
          Mechanical life
          1,000,000
          Weight kg
          1.3
          1.4
          3.0
          3.2
          4.9
          5.3
          Suitable power unit
          HD-10S
          HD-106R
          Atomospher temperature
          -10乣+40

          Major dimensions
          model No.
          NAB-
          dimension
          φA
          L
          φB
          SH7
          WE9
          φC
          NAB-32
          90
          63.5
          105
          12
          4
          5.5
          NAB-34
          90
          71
          105
          14
          5
          5.5
          NAB-42
          124
          80
          144
          18
          5
          6.5
          NAB-44
          124
          90
          144
          22
          7
          6.5
          NAB-52
          150
          89.5
          170
          22
          7
          9
          NAB-54
          150
          102
          170
          28
          7
          9

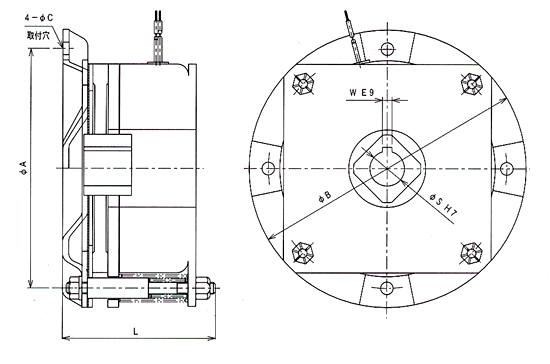

          Illustration.
          [holes for mounting]
          NAB-52
